Doc DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate for Car Exhaust Systems-维优（天津）国际贸易有限公司

Product Introduction

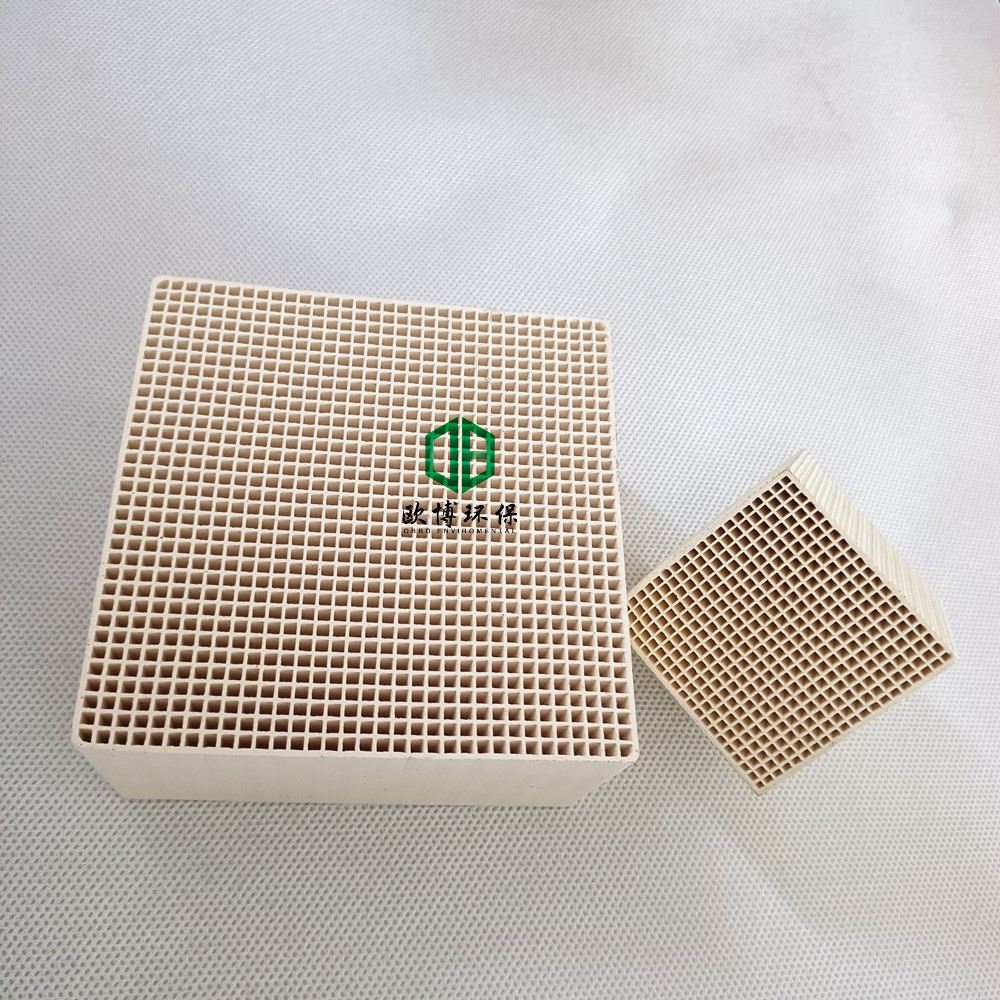

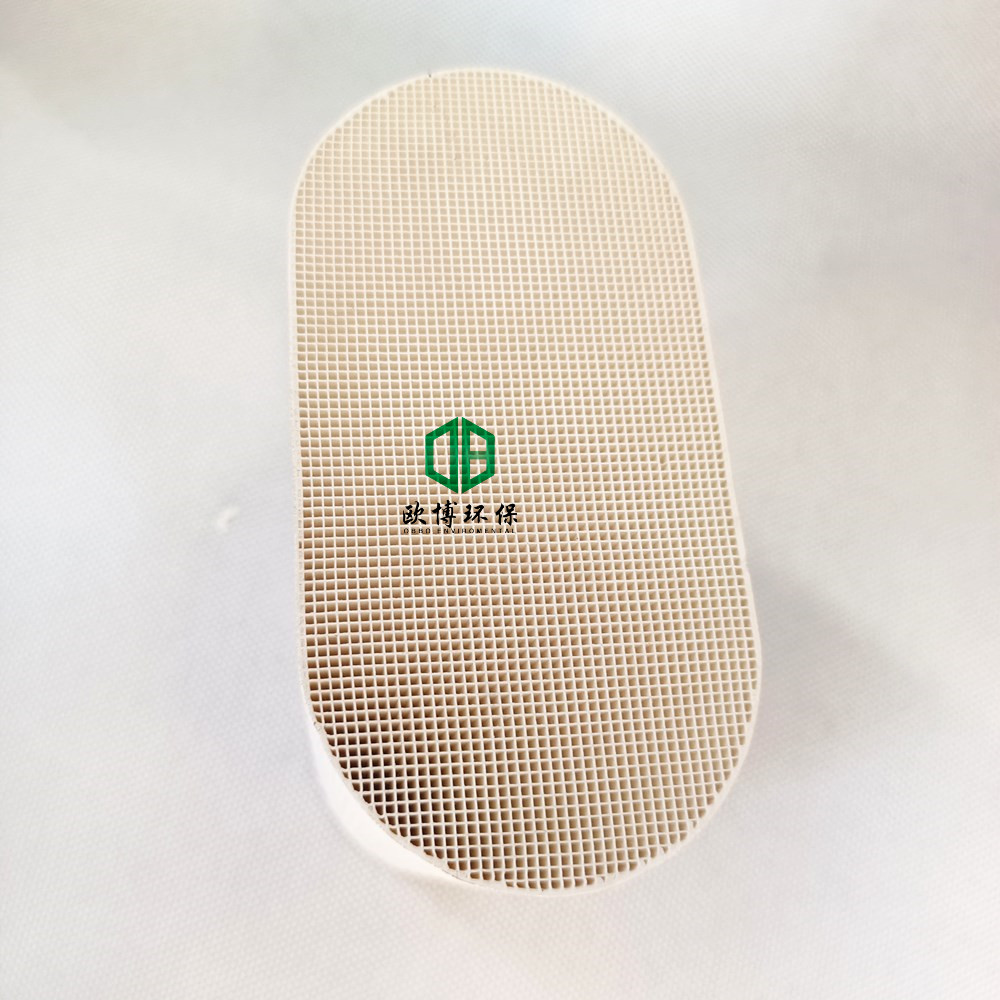

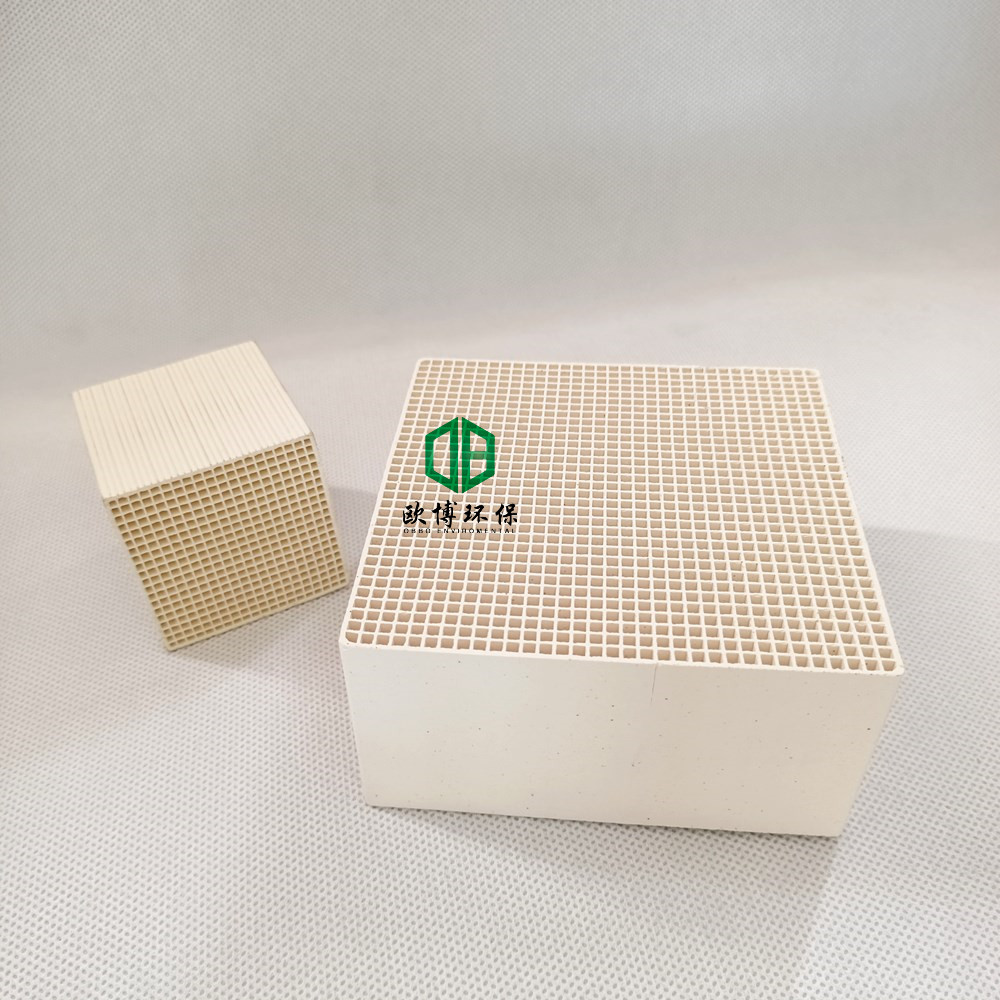

Honeycomb ceramic substrate is made of cordierite, and it is used for car catalytic converter. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals.

Honeycomb ceramic is used as DOC, SCR and DPF substrate. It features higher cpsi, thin wall and higher specific surface area, etc. After being coated with precious metal, it is applied to diesel and gasoline exhaust system and industrial gas treatment. We make customized production based on your specification.

Product parameters

Properties of Honeycomb Ceramics
Item	Unit	Alumina Ceramic	Dense Cordierite	Cordierite	Mullite
Density	g/cm3	2.68	2.42	2.16	2.31
Bulk Density	kg/m3	965	871	778	832
Thermal Expansion Coefficient	10-6/k	6.2	3.5	3.4	6.2
Specific Heat Capacity	j/kg·k	992	942	1016	998
Thermal Conductivity	w/m·k	2.79	1.89	1.63	2.42
Thermal Shock Resistance	Max K	500	500	600	550
Softening Temperature	ºC	1500	1320	1400	1580
Maximum Service Temperature	ºC	1400	1200	1300	1480
Average Heat Capacity	w/m·k/m3·k	0.266	0.228	0.219	0.231
water Absorption	%	≤20	≤5	15-20	15-20
Acid Resistance	%	0.2	5	16.7	2.5

Function

* Environmental-friendly
* Wear-resistant, long lifespan
* Main raw material: cordierite ceramic and is the key component of three-way catalytic converter.
* High temperature resistance;
* High mechanical strength;
* 100cpsi, 200cpsi, 300cpsi, 400cpsi, 600cpsi;
* Shape can be round, racetrack, oval, square based on request;
